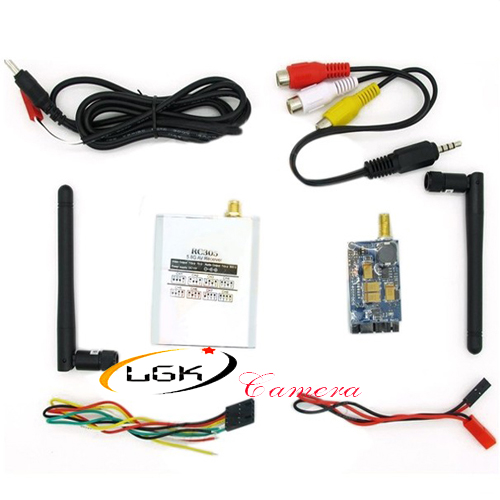

Phát sóng 5.8G 400mW AV Receiver RC305 with Transmitter TS353

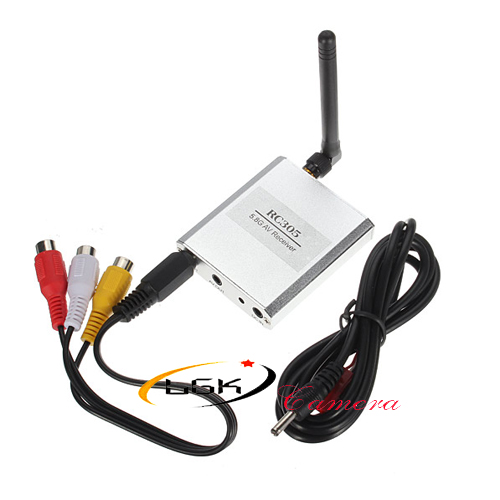

Receiver RC305:
Channels: 8
Receiver operating voltage: 5V - 12V DC
Operating temp: -10~85C
Video bandwidth: 0~8.0MHz
Audio frequency: 6.5MHz
Video input level: 0.8~1.2Vp-p
Video input impedance: 75Ohm
Audio input level: 0.5~2.0Vp-p
Audio input impedance: 10K/Ohm
Antenna connector: SMA
Dimensions: 61x52x13mm
Weight: about 43g

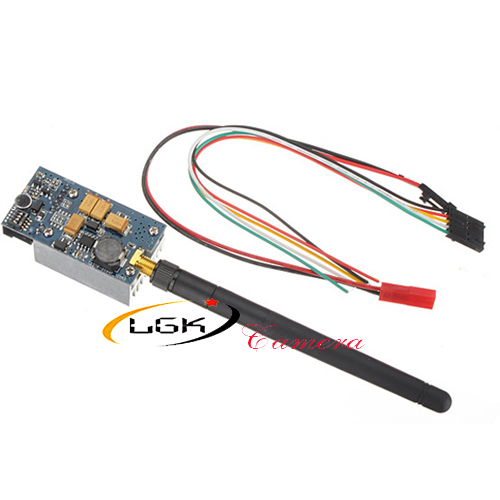

Transmitter Module TS353:
Item Name:  FPV 5.8G Transmitter TS353
Video Format supported: NTSC/PAL
Working Frequency: 5645-5945Mhz
Antenna Connection: SMA-pin
Power Input: 7-15V (3S Lipo suggested, does NOT support 4S Lipo)
Transmitting Current: 220mA
Dimension: 55 x 26 x 17mm (excluding antenna)
Receiver RC305:
Channels: 8
Receiver operating voltage: 5V - 12V DC
Operating temp: -10~85C
Video bandwidth: 0~8.0MHz
Audio frequency: 6.5MHz
Video input level: 0.8~1.2Vp-p
Video input impedance: 75Ohm
Audio input level: 0.5~2.0Vp-p
Audio input impedance: 10K/Ohm
Antenna connector: SMA
Dimensions: 61x52x13mm
Weight: about 43g

Transmitter Module TS353:
Item Name:  FPV 5.8G Transmitter TS353
Video Format supported: NTSC/PAL
Working Frequency: 5645-5945Mhz
Antenna Connection: SMA-pin
Power Input: 7-15V (3S Lipo suggested, does NOT support 4S Lipo)
Transmitting Current: 220mA
Dimension: 55 x 26 x 17mm (excluding antenna)
