PTZ-3 3axis motorized head for max 15kg loading and EZ2020Z Pan-Tilt

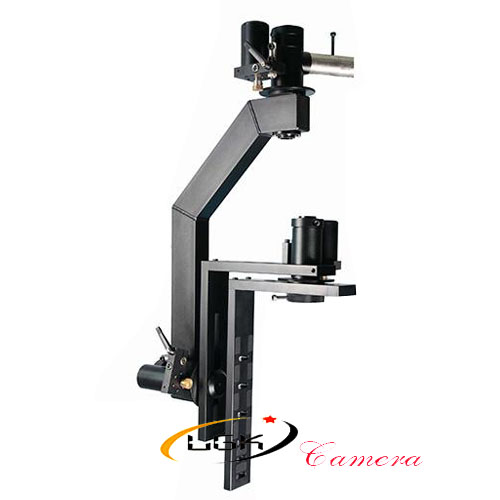

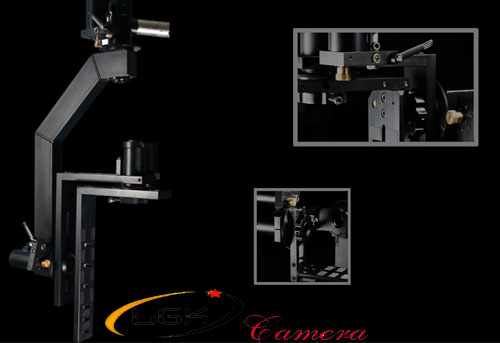

PTZ-3 3axis motorized head for max 15kg loading
• Max camera weight: 15 kgs
•  Weight of head: 8 kgs
• Carton Weight : 12 kgs
• Pan, till, roll rotation: >360 degrees
• AC Adapter:  input  AC 100 - 240V ; output - DC 12V -4A

• Real time adjustable speed
• Precise CNC machined parts made of aluminum alloy, steel and copper
• surface is anodized, matte black
• Motor: working from 0.5 voltage, ultra quiet, long range of speed, big torque
• Motor rotation speed:35~65 RPM
• Motor Ration torque: 12kgf/cm or 120N/cm

Product details

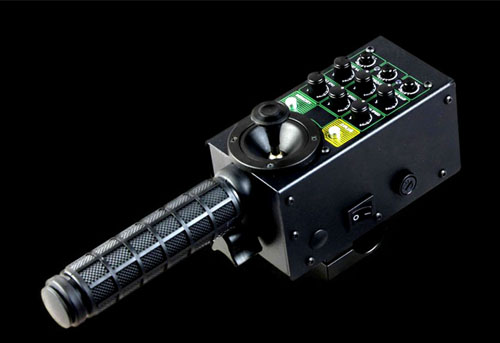

EZ2020Z 3-axis controller for pan tilt head
• Operation Voltage:12V—15V(max 16V,optional 24V)
• Operation Currency:4A(power loss below 0.1A)
• Power output per channel:0-12V,0-2A
• Currency protection point:2A/channel
• Adjustable Impedance:0S—2S
• Fuse:10KΩX2

• other fuse:10KΩX6
• LED indicator:20mA X2
• Net weight: 1 kgs
• Enclosure finish: painted black
• Enclosure material: iron
• Rod clamp hole size: 25 mm
• Axis: 3
• 1 memory point for favorite setting
• 4 points of 90,180,270,360 degrees controls for ROLL axis
Product details
