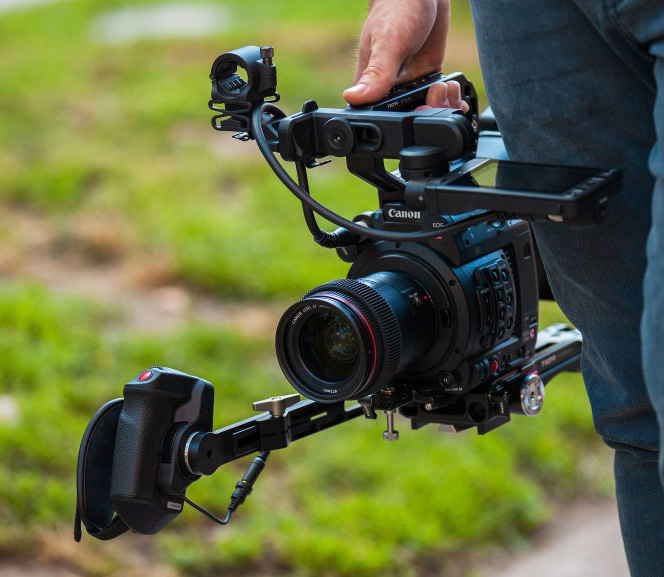

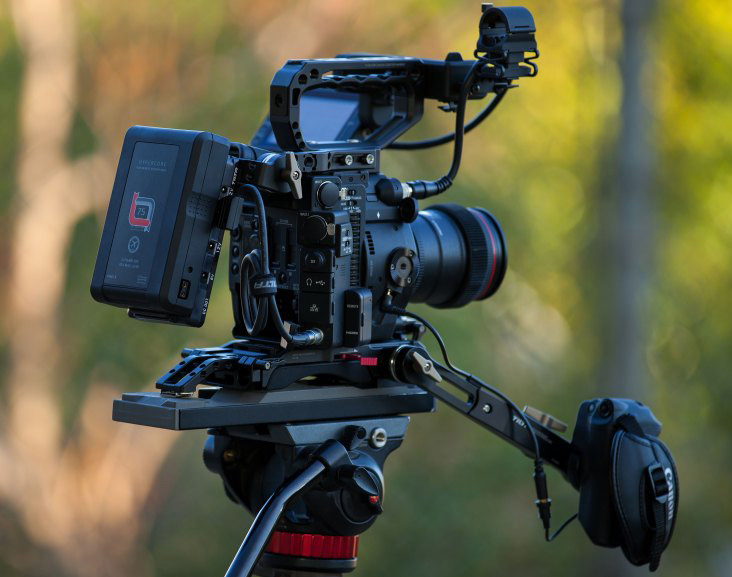

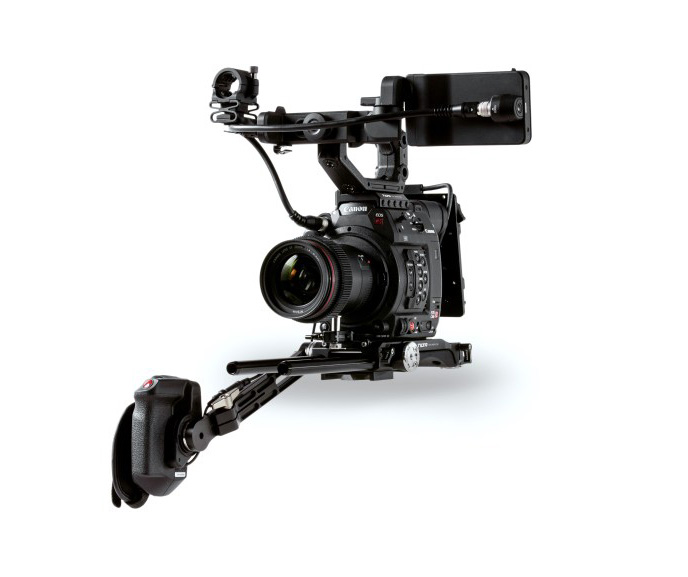

Arm your camera with this Tilta camera cage specifically designed for the Canon C200.

On the bottom of the cage is a Sony VCT-U14 compatible baseplate that allows you to attach various accessories via 15mm LWS rods on either the front or back side of the plate. The plate also has an ergonomic shoulder pad on the bottom so that you can quickly and easily detach from the VCT-U14 plate and be shoulder mount-ready in no time. The plate also has Arri Standard Rosette connections on the left and right sides to allow you to attach handles for handheld operation as well as a built-in lens adapter support bracket.

An extendable rosette arm and extension cable are also included so that you can extend out and adjust the mounting position of your Canon C200 operating handle to your liking.

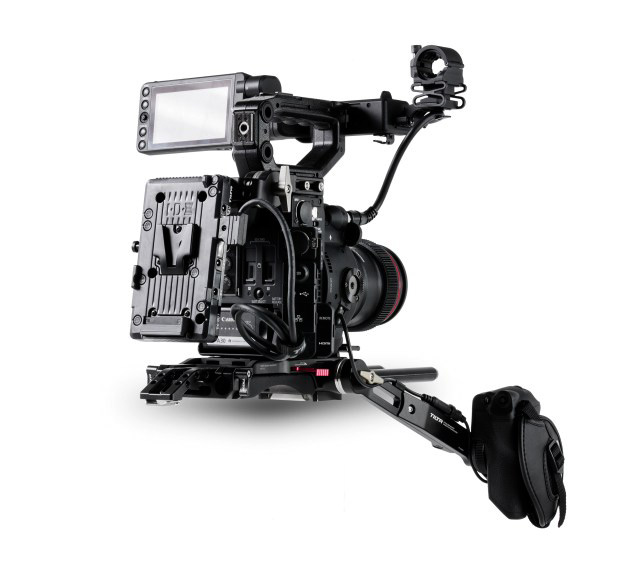

The optional Tilta Battery Plate for Canon C200 Cage (available in either gold mount or V-mount) attaches to the top plate via an Arri Standard Rosette connection (the top plate and battery plate come as a package if you order the version of the cage with a battery plate; if ordered without a battery plate, the top plate is not included). It provides an alternative way to power the camera and has several different DC and P-tap outputs to allow you to power accessories.

The top plate that’s included with the optional battery plate includes a rosette connection that fits around the camera’s EVF to allow you to attach the Tilta Battery Plate for Canon C200. It also has several 1/4″-20 and 3/8″-16 screw holes to allow you to attach accessories.

The optional top handle fits snugly onto the top plate and allows you to attach the Canon C200 LCD monitor as well as a shotgun mic bracket (the top plate is not required to attach the handle; it can also attach directly to the top of the Canon C200 body). It also has several 1/4″-20 and 3/8″-16 screw holes to allow you to attach accessories and is made from the same sturdy aluminum-alloy material as the rest of the cage.

1. (1) Sony VCT-U14 quick release baseplate
   • (2) Arri Standard Rosette connections
   • (1) Ergonomic shoulder pad
2. (1) Lens adapter support
3. (1) Extendable rosette arm for Canon C200 handle
4. (1) Canon C200 handle connection cable
5. (2) 15mm x 200mm rods
6. Canon C200 battery plate  (optional — comes with top plate and is available in V-mount or gold mount)
   • (1) Arri Standard Rosette adapter
   • (1) 14.8V P-tap output
   • (2) 12V DC outputs
   • (1) 8V DC output
7. (1) Top plate (optional — comes with battery plate)
   • ¼”-20 and ⅜”-16 screw holes
