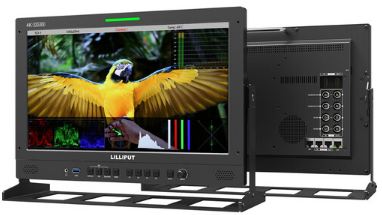

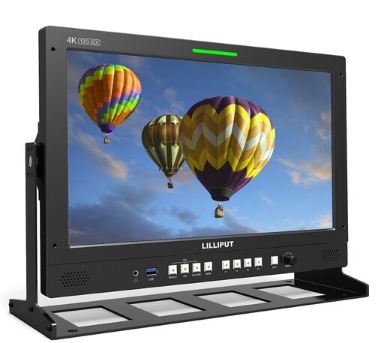

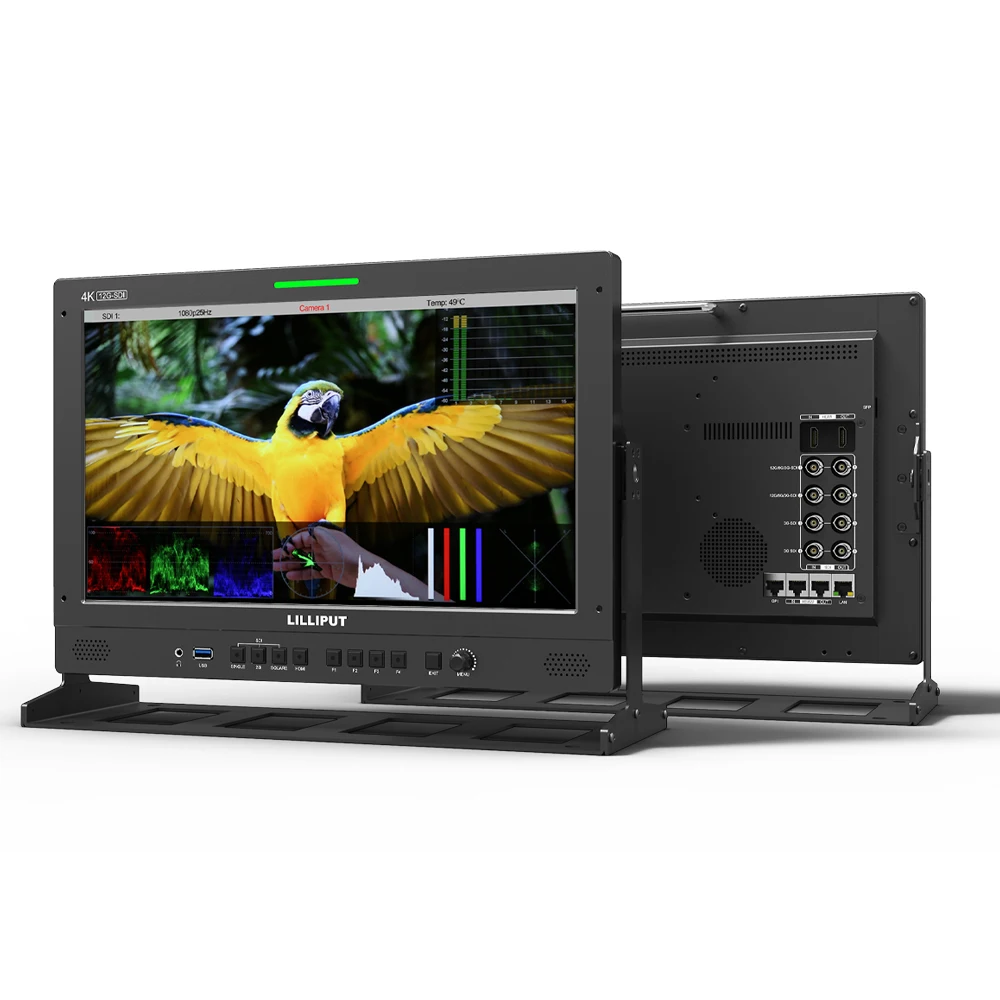

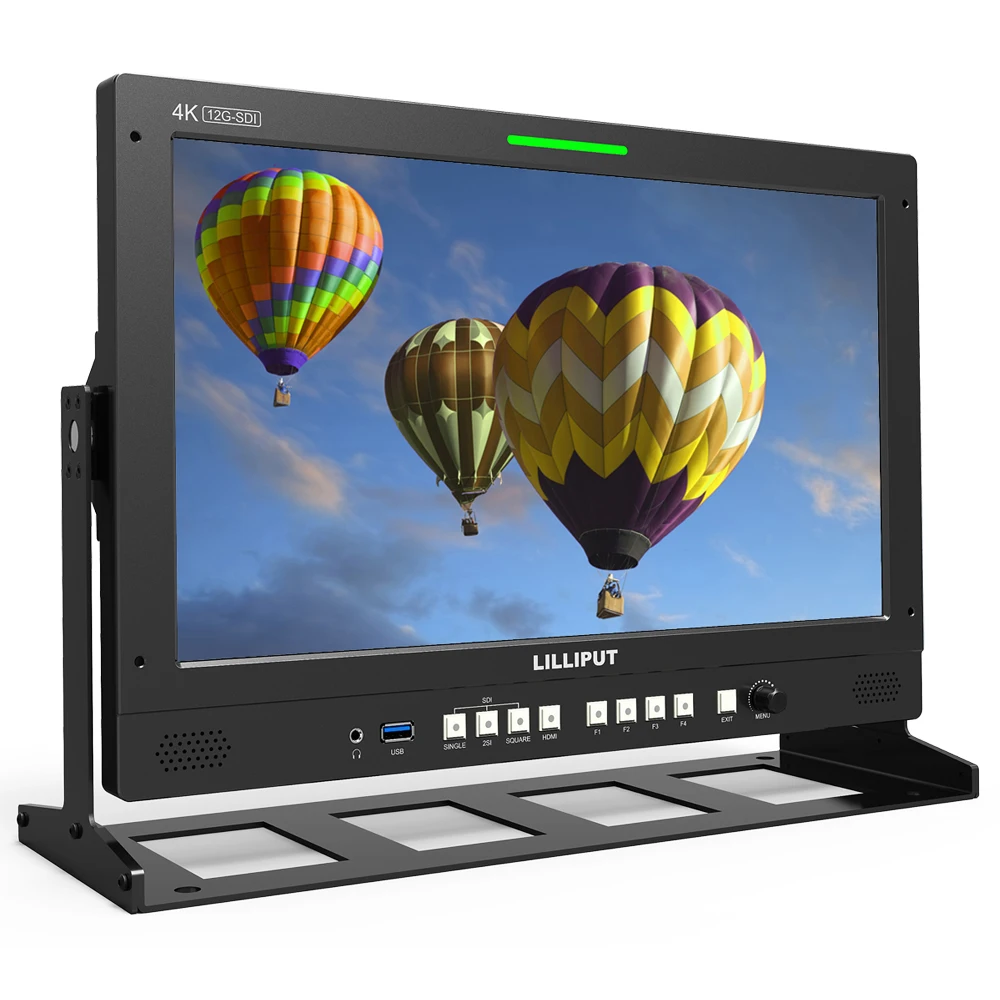

Màn Hình Lilliput Q15 15.6" 12G-SDI/HDMI
Giá bán : 31.000.000đ
Phí vận chuyển: Miễn phí trong nội ô thành phố.
- Còn hàng : Ship hàng từ 1 đến 3 ngày trên toàn quốc
Điểm nổi bật của sản phẩm :
------------------------------------------------------------------------------------------------------------
- Màn hình độ phân giải 15.6" 3840 x 2160
- Hỗ trợ đầu vào DCI 4K lên đến
- Hỗ trợ hiệu chỉnh màu chính xác
- Hỗ trợ HDR, tải các LUT 3D tùy chỉnh
- 178° H/V Viewing Angle
- 330 cd / m² Độ sáng
- Tỷ lệ tương phản 1000: 1
- Điểm đánh dấu trên màn hình, Điều chỉnh tiêu điểm
- Tấm pin V-Mount
- Đầu vào nguồn XLR 4 chân 12-24 VDC
Thông tin sản phẩm :
- Sản phẩm mới 100% Fullbox
- Bảo hành : 12 tháng
Specification
Brand Name:LILLIPUT
Certification:CE
Certification:FCC
Origin:CN(Origin)
Brightness:330 cd
Display Screen:15"
Contrast:1000:1
Resolution:3840 * 2160
Model Number:Q15
Package contents:
V-mount or Anton Bauer Mount with Gimbal Bracket:
1) 15V/4A DC Adapter: 1pc
2) VESA Mount Plate Bracket: 1pc
3) V-mount (or Anton Bauer Mount): 1pc
4) Base Bracket: 1 pair
5) Acrylic Screen Protector ( for 15.6" monitor only): 1pc
6) 8GB USB flash drive (User guide and software included): 1pc
7) Gimbal Bracket: 1pc
V-mount or Anton Bauer Mount with Carrying Case:
1) 15V/4A DC Adapter: 1pc
2) VESA Mount Plate Bracket: 1pc
3) V-mount (or Anton Bauer Mount): 1pc
4) Base Bracket: 1 pair
5) Acrylic Screen Protector ( for 15.6" monitor only): 1pc
6) 8GB USB flash drive (User guide and software included): 1pc
7) Carrying Case: 1pc
Q15_15.6 inch broadcast production studio monitor Short Description: Lilliput Q15 is a professional production studio monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer. Compatible with a multitude of inputs – and featuring the option of a 12G SDI and 12G-SFP Fiber Optic input connection for broadcast quality monitoring, It also features Audio Vectoring using a Lissajous graph shape allowing you to visualize the depth and balance of a stereo recording. You also can connect your computer to control the monitor via applications. Model:Q15 Display:15.6 inch, 3840 X 2160, 330nits Input:12G-SDI, 12-SFP,HDMI 2.0 Output:12G-SDI,HDMI 2.0 Remote Control:RS422 ,GPI , LAN Feature:3D-LUT, HDR,Gammas,Remote Control ,Audio vector ,Camera Auxiliary Functions.
1. Main Features
Support standard 12G-SDI input interface (x2), 3G-SDI input interface (x2), and support Single-Link, Dual-Link and Quad-Link signals.
Support HDMI 2.0/1.4 inputs and loop outputs.
Support SFP input, optical module for optional.
Input signals support up to 3840x2160 60/59.94/50/30/29.97/25/24/23.98p and 4096x2160 60/59.94/50/ 48/ 47.95/ 30/29.97/25/24/23.98p; Signal Loopout.
12 bits data processing and 12 bits data buffering
Monitor control via GPI/ RS422/ LAN.
Customized Menu Knob.
Support customized various waveform mode:Waveform/Vector/Histogram/Audio Vector/Level Meter.
HDR (High Dynamic Range) display supporting ST 2084/ Hybrid Log Gamma.
Gamma selection: 1.8-2.8.
Custom 3D LUT file load through USB.
Gamut supporting SMPTE-C/ Rec709/ EBU.
Color Space/ HDR/Gamma /Camera Log comparison with original (side by side).
Color Temperature: 3200K/5500K/6500K/7500K/9300K/User.
False Color: Default/Spectrum/ARRI/RED.
Aspect Marker (16:9/1.85:1/2.35:1/4:3/ 3:2/ 2.0X/2.0X MAG/Grid/User).
Aspect (Full/16:9/1.85:1/2.35:1/4:3/3:2/2.0X/2.0X MAG).
Audio: supporting Audio Vector, Level Meter, (HDMI supporting 8 channels/ SDI supporting 16 channels).
TimeCode: LTC/VITC.
UMD display:White/Red/Green/Blue/Yellow/Cyan/Magenta text color for optional.
Color Bar Mode: Rec601/Rec709/BT2020.
Check Field: Red/Green/Blue/Mono.
Zoom at any position and at different scale.
Peaking (Red/Green/Blue/White/Black).
Tally (Red/Green/Yellow)
Color Temperature
According to the different senses of the pictures, filmmaker have their own preferences for different color temperatures. The default is 3200K / 5500K / 6500K / 7500K / 9300K five color temperature conditions, can also be customized according to user needs.
Gammas
Gamma redistributes tonal level closer to how our eyes perceive them. Since Gamma value is adjusted from 1.8 to 2.8, more bitswould be left to describe the dark tones where the camera is relatively less sensitive.
Audio Vector (Lissajous)
The Lissajous shape is generated by graphing the left signal on one axis against the right signal on the other axis. It used to test the phase of mono audio signal and phase relationships depends on its wavelength.Complex audio frequency content will make the shape look like a complete mess so it is usually used in post production.
HDR
HDR
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality. Support ST2084 300 / ST2084 1000 / ST2084 10000 / HLG.
3D-LUT
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 3D-LUT, featuring 17 default logs and 6 user logs.
3D LUT LOAD
Supports loading the .cube file via USB flash disk.
|
DISPLAY |
Panel |
15.6″ |
|
|
Physical Resolution |
3840*2160 |
||
|
Aspect Ratio |
16:9 |
||
|
Brightness |
330 cd/m² |
||
|
Contrast |
1000：1 |
||
|
Viewing Angle |
176°/176°（H/V) |
||
|
HDR |
ST2084 300/1000/10000/HLG |
||
|
Supported Log Formats |
SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User… |
||
|
Look up Table(LUT)support |
3D LUT (.cube format) |
||
|
Technology |
Calibration to Rec.709 with optional calibration unit |
||
|
VIDEO INPUT |
SDI |
2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
|
|
SFP |
1×12G SFP+(Fiber module for optional) |
||
|
HDMI |
1×HDMI 2.0 |
||
|
VIDEO LOOP OUTPUT |
SDI |
2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
|
|
HDMI |
1×HDMI 2.0 |
||
|
SUPPORTED FORMATS |
SDI |
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
|
|
SFP |
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
||
|
HDMI |
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… |
||
|
AUDIO IN/OUT |
SDI |
16ch 48kHz 24-bit |
|
|
HDMI |
8ch 24-bit |
||
|
Ear Jack |
3.5mm |
||
|
Built-in Speakers |
2 |
||
|
REMOTE CONTROL |
RS422 |
In/out |
|
|
GPI |
1 |
||
|
LAN |
1 |
||
|
POWER |
Input Voltage |
DC 12-24V |
|
|
Power Consumption |
≤32.5W (15V) |
||
|
Compatible Batteries |
V-Lock or Anton Bauer Mount |
||
|
Input Voltage(battery) |
14.8V nominal |
||
|
ENVIRONMENT |
Operating Temperature |
0℃~40℃ |
|
|
Storage Temperature |
-20℃~60℃ |
||
|
OTHER |
