Vaxis 500 SDI HDMI 3G Wireless Transmitter for ARRI Alexa RED Epic Camera

Main features:

1.HDMI 1.3 spec supports

2.HDMI and 3G SDI input and output

3.Highest resolution 1080p 60,no delay and no compression

4.Support audio formats include Dolby True HD, DTS-master, etc.

5.AES-128 encryption with air interface HD video data stream

6.Support point to point, and point to multi points network topology

7.Each RX paired to the unique TX in factory,

8.5GHz ISM frequency band,maximum 10 frequency channels selected by user knob,coexist with WIFI.

 9.Maximum transmission distance 500ft(150M)

 10.Signal indicators for wireless power status, Video status and receiver RSSI

 11.Wide range power voltage input, adapt most kinds of camera battery

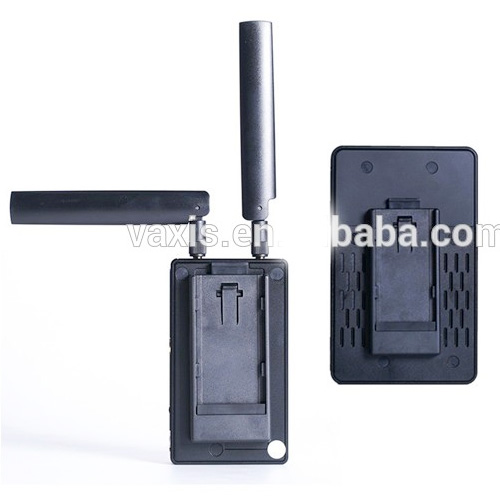

 12.Optional Sony F970 battery buckle, convenient for field battery install and replacement

 13Any input and output ports with ± 4 kV ESD protection level (HBM, contact discharge)

 14.Industrial metal case, stable and reliable

The 150M/500ft  Wireless HDMI/SDI Transmission Suite utilize today'smost advanced wireless video transmission technology, which can real-ize the broadcast-class and uncompressed 3G SDI/HDMI HD video signal transmitted with no compression and zero delay.

The wireless HD suite has 2 stick antennas in transmitter side,can work in 5.1-5.9GHz frequency band and be flexibly software configured to licensed or ISM band of global different regions, as well as the side panel of both transmitter and receiver has been installed a frequency select k-nob, which provide maximum 10 workable frequency channels, and support maximum 4 sets working simultaneously.

The wireless suite can a-ccept wide range DC power input, which is suitable for many kinds of camera battery model. The suite also can sustain ±8 kV ESD (HBM, contact discharge), the industry class metal case and professional heat de-sign would guarantee most robust reliability.

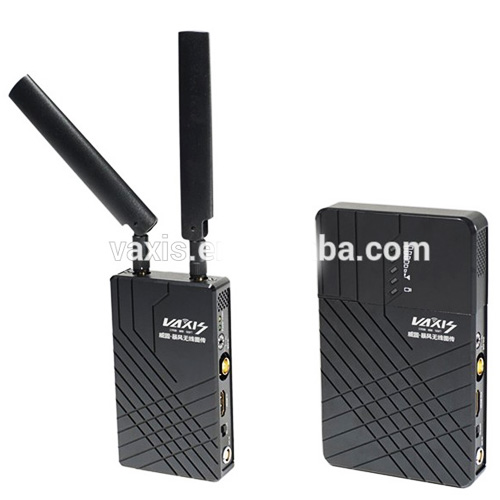

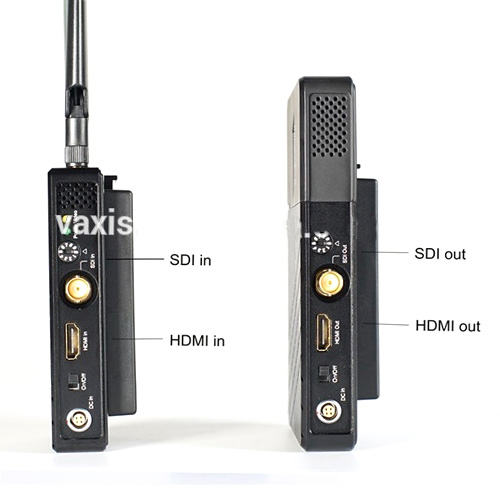

The suite include one transmitter and one receiver, where the transmitter provides a 3G/HD SDI input and a HDMI input, and the receiver also provide a 3G/HD SDIoutput and a HDMI output.

Typical connection instruction

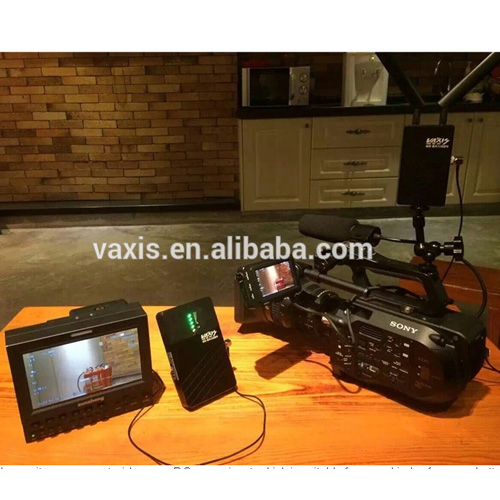

Connect camera SDI or HDMI output to transmitter SDI or HDMI input port, and the transmitter can fixed in hot-shoe port of the camera. Connect HDMI or SDI output port of the receiver to SDI or HDMI input port of the HD monitor. Make sure all antennas and batteries are equipped normally.

Packing List

1) 1 unit transmitter
2) 1 unit receiver
3) 7 5GHz Omni-directional and high efficiency antennas (SMA female)
4) 2 DC convert cable (LEMO 4 pin-male to D-Type receptacle)
5) 2 Torx screwdriver

6) Hot-shoe converter
7) Articulating arm trestle
8) Crab clamp

9) VAXIS air case
