Màn Hình Lilliput FS7 7 inch 1920x1200( 4K) HDMI input output 3G-SDI, DSLR SONY FS5 FS7 FS7,Canon C200 II RED

  • The Lilliput FS7 monitor is a 7" widescreen monitor with 4K HDMI 1.4 input with loop through, and SDI input/output loop through. Housed in a solid metal frame, and with a plethora of additional framing features/options, it gives you superior control over your workflow whether in the field or in the studio .
  • 4K HDMI & 3G-SDI Input & Loop Through The Lilliput FS7 Features both 4K inputs at 4096 x 2160p @24p and 3840 x 2160p @ 23, 24, 25, 29, and 30Hz. The SDI input and standard HDMi input operate at up to 1920 x 1080p @60Hz frequencies, making for a wide variation of input specs.

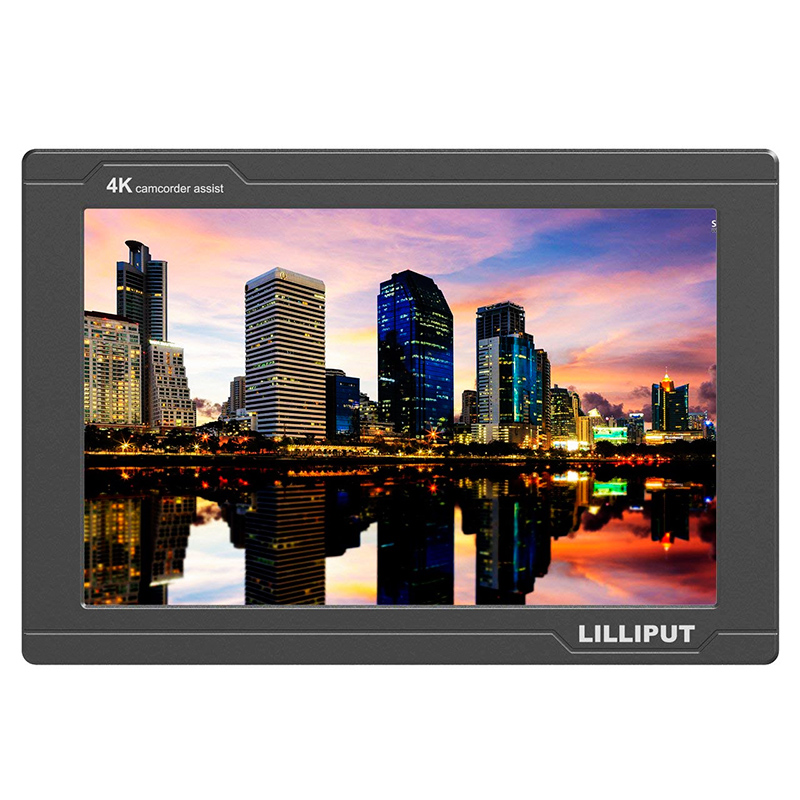

  • 7" Panel with 16:10 Aspect Ratio The Lilliput FS7 features our first full HD native panel, clocking in at 1920 x 1200. Much improved over its predecessors, this high resolution will give you the clearest view of your images without the need for down sampling or interpolatio

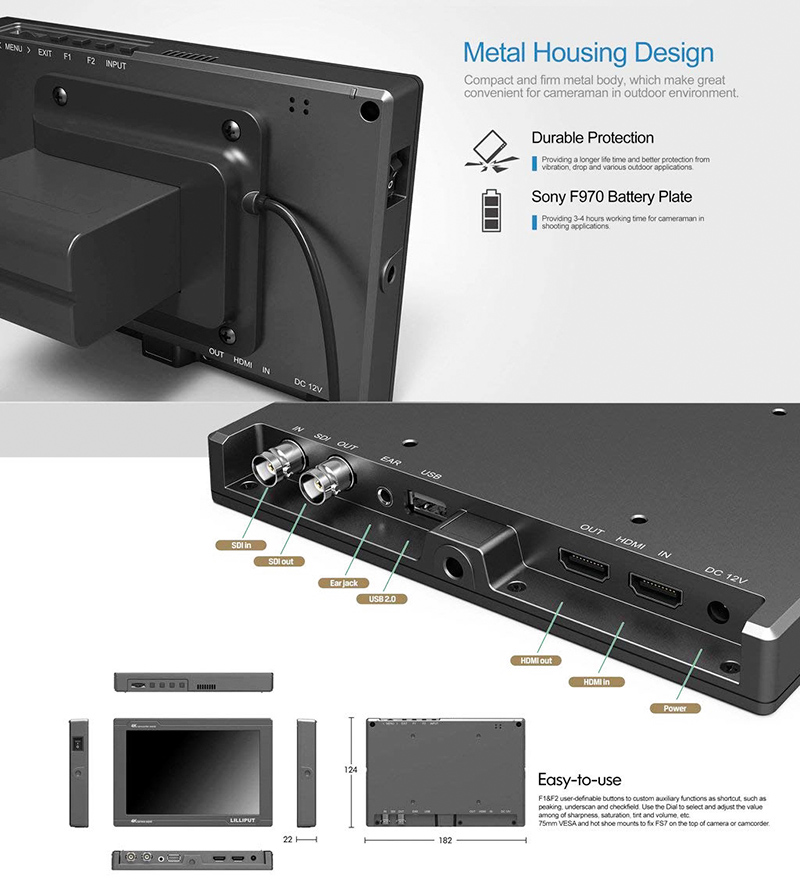

  • Metal Outer Body for Added Durability The FS7 has a lightweight metal housing - designed to take the roughest of knocks while at the same time being both light and portable. The unit weighs in at 320g, with an overall thickness of 22mm - far thinner and lighter than many other comparable models. Invaluable for use in the field, or in a tough-and-tumble environment.

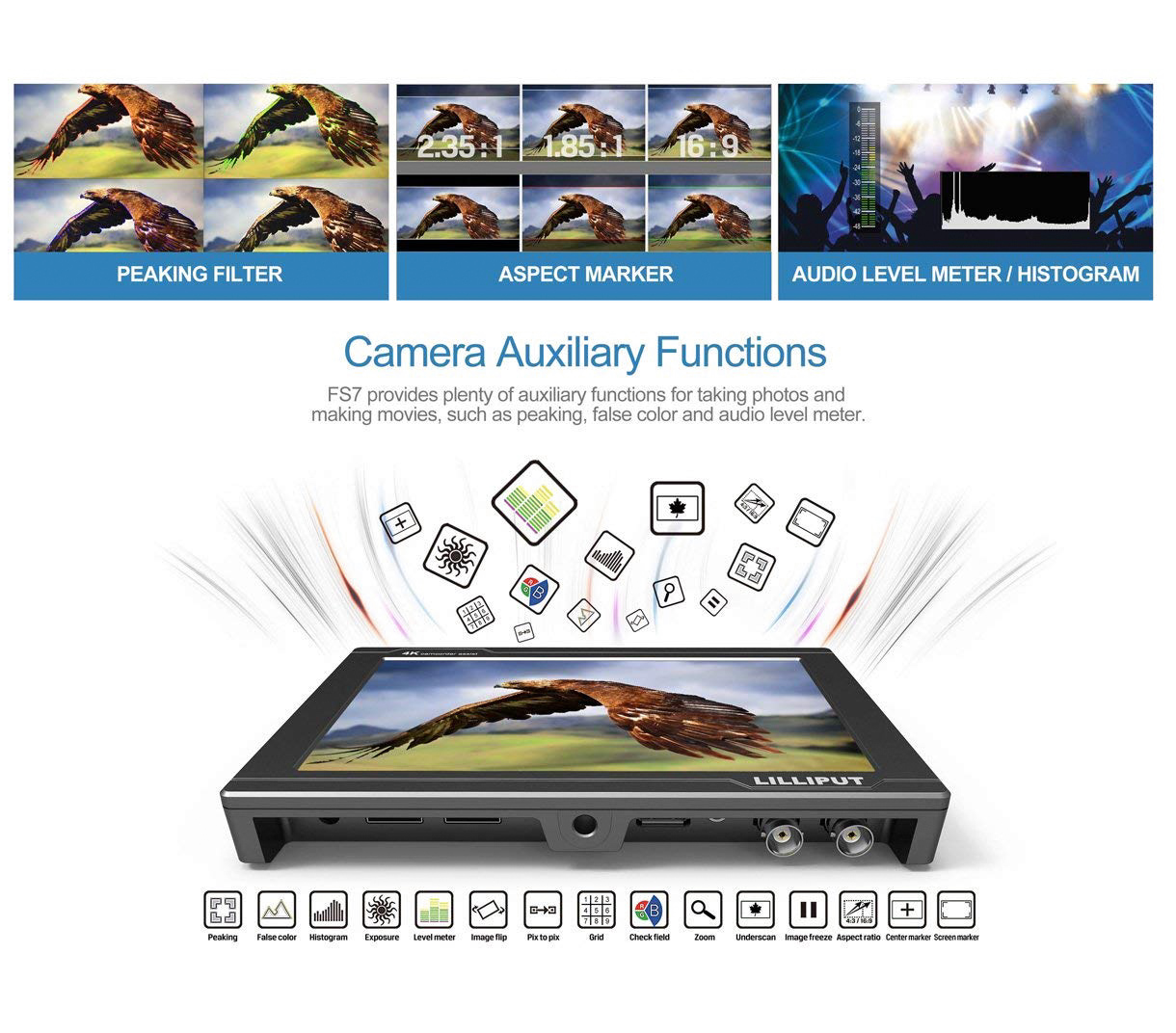

  • Assisted Monitoring Functionality The FS7 has a plenitude of advanced functions to assist with your shooting. Namely - Timecodes, Columnar YRGB, Pixel Zoom Function, Vector Scopes, Waveforms, Audio Level Meters, Peaking, False Colour, Histograms, Exposures, Check Fields, Color Bars, Pixel to Pixel, and Image flips. A host of functions for a multi faceted monitoring solution. Sony F970 battery plate: The battery is not included and need to be purchased by customer.





Product description

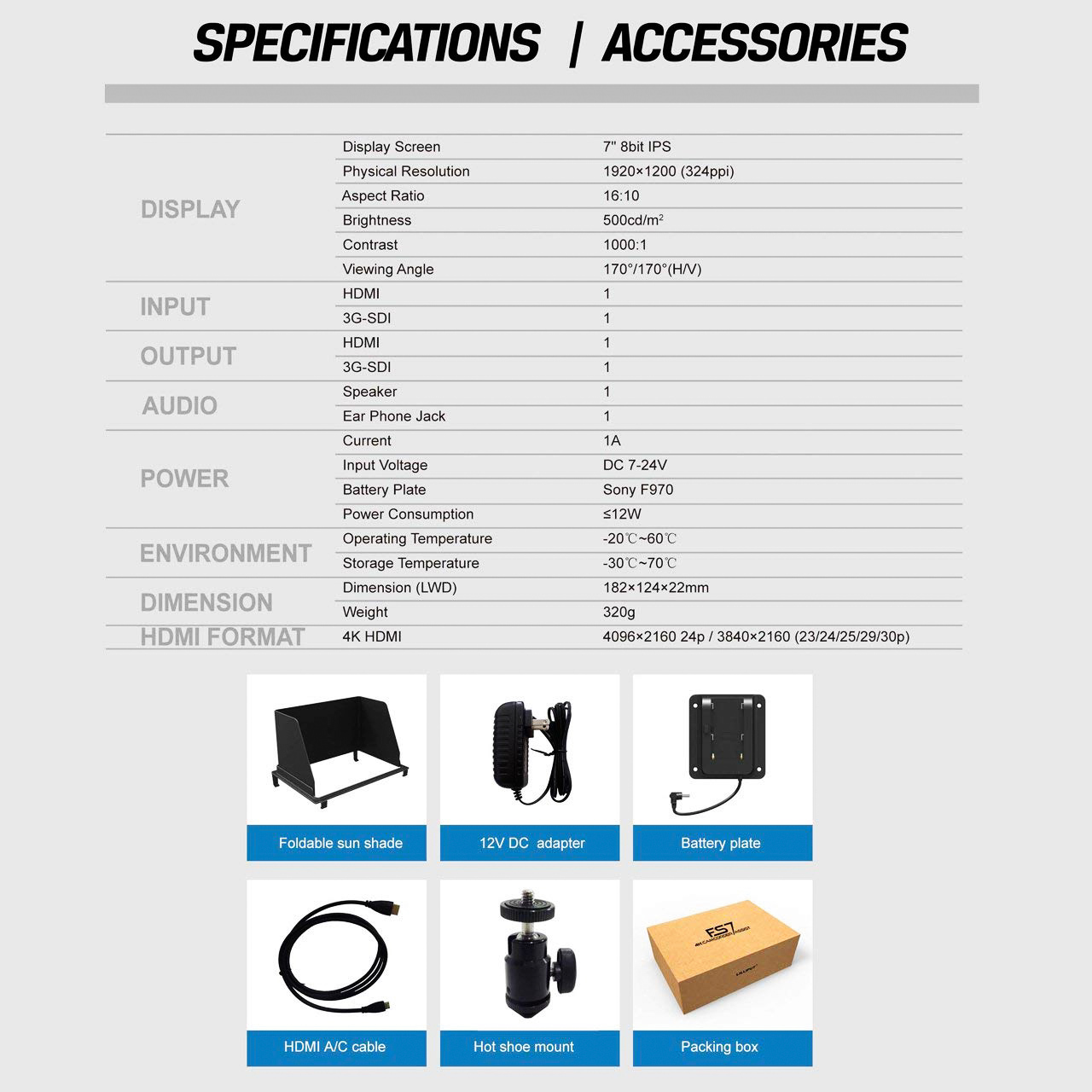

Specifications:
Display
Display screen: 7 " 8bit IPS
Physical resolution: 1920*1200(324 ppi)
Aspect ratio: 16:10
Brightness: 500cd/㎡
Contrast: 1000:1
Viewing angle: 170"/170" (H/V)
Input
HDMI: 1
3G-SDI: 1
Output
HDMI: 1
3G-SDI: 1
Audio
Speaker: 1
Ear phone jack: 1
Power
Current: 1A
Input voltage: DC 7-24V
Battery plate: Sony F970
Power consumption: < =12W
Environment
Operating temperature: -20 degree~60 degree
Storage temperature: -30 degree~70 degree
Dimension
Dimension (LWD): 182x124x22mm
Weight: 320g
HDMI Format
4K HDMI: 4096x2160 24p / 3840x2160 (23/24/25/29/30p)

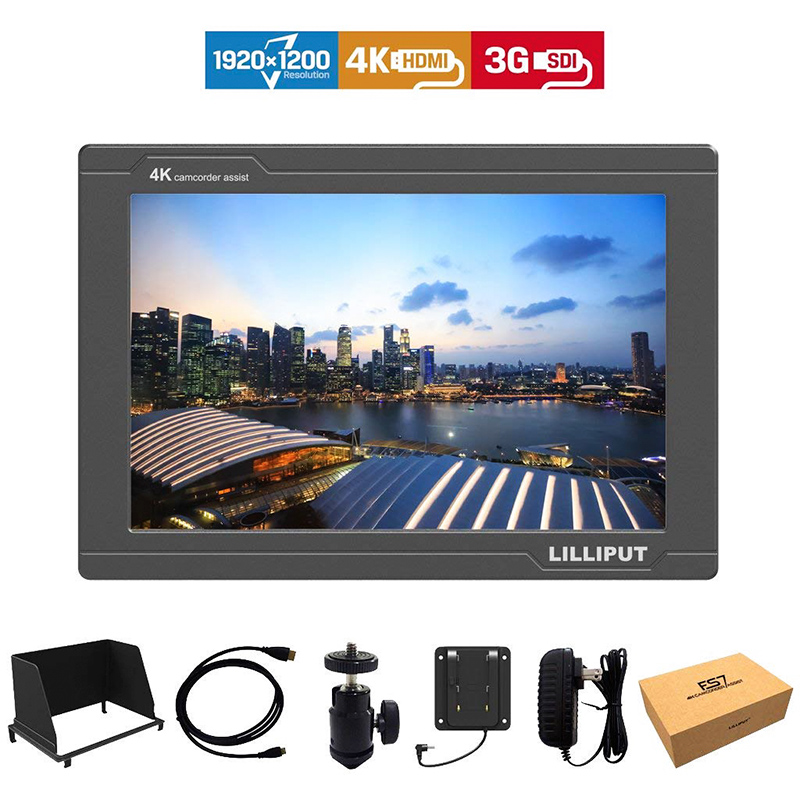

Contents Of Box:
1*Lilliput FS7 monitor
1*Foldable sun shade
1*12V DC adapter
1*Battery plate
1*Hot shoe mount
1*HDMI A/C cable (HDMI to mini HDMI )
1*Packing box
